Enterprise YD Series

A compact three-phase online UPS for data centres and server rooms — efficient, DSP-controlled and built to keep the batteries in reserve for real outages.

Range
10–80 kVA
Configuration
Three-phase in / three-phase out (3:3)
Topology
IGBT transformerless · full DSP digital control
Talk to our teamView specifications

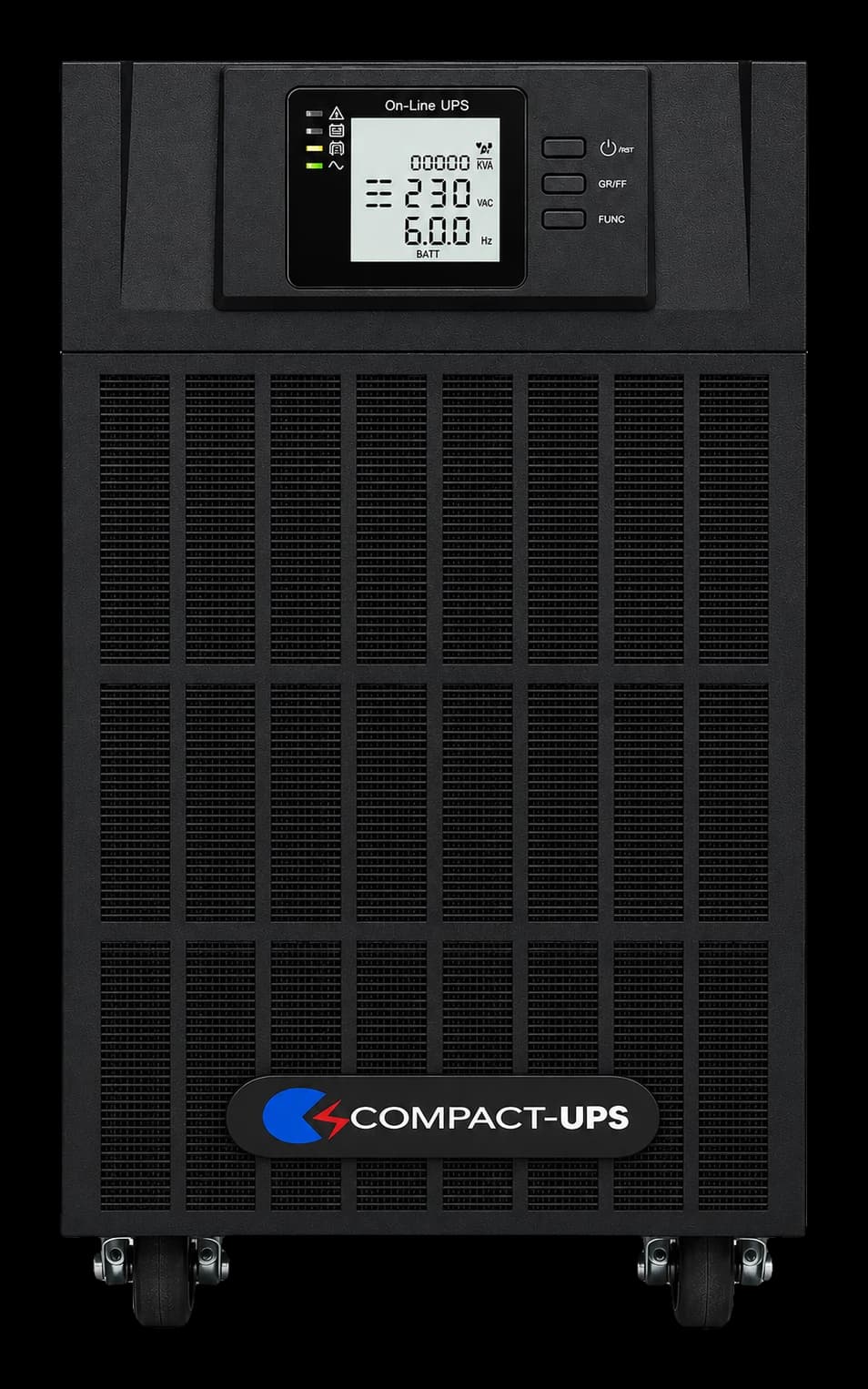

COMPACT Enterprise YD 3300 Series three-phase transformerless online UPS tower on castors, three-quarter view
Overview

What it is

The YD 3300 Series is COMPACT's three-phase transformerless online UPS, built on an IGBT converter with 0.99 input power-factor correction and input current harmonics below 3%. A full DSP control system samples voltage, current and frequency fast enough to hold the output tightly under disturbance.

With an ultra-wide 208–478 V input window, a site may never actually draw on the batteries except for a complete outage. The range delivers pure RAS — reliability, availability, scalability — for data centres and server farms, from 10 kVA to 80 kVA.

Key capabilities

What it does

0.99 input power factor

IGBT front end with input current harmonics (THDi) below 3% — no oversizing of upstream gensets, cables or switchgear.

Ultra-wide input window

208–478 VAC operating range and 45–66 Hz frequency window; batteries are held in reserve for true outages.

0 ms output transfer

Mains-to-battery and mains-to-bypass transfers are both 0 ms.

Full DSP digital control

High-speed sampling of V / I / frequency for accurate output regulation and fast fault response.

Parallel for expansion or redundancy

Units can be paralleled to add capacity or to build redundancy; flexible DC-bus configuration.

Flexible battery string

Optional 16 / 18 / 20 battery blocks per string with intelligent charging management and battery-group optimisation.

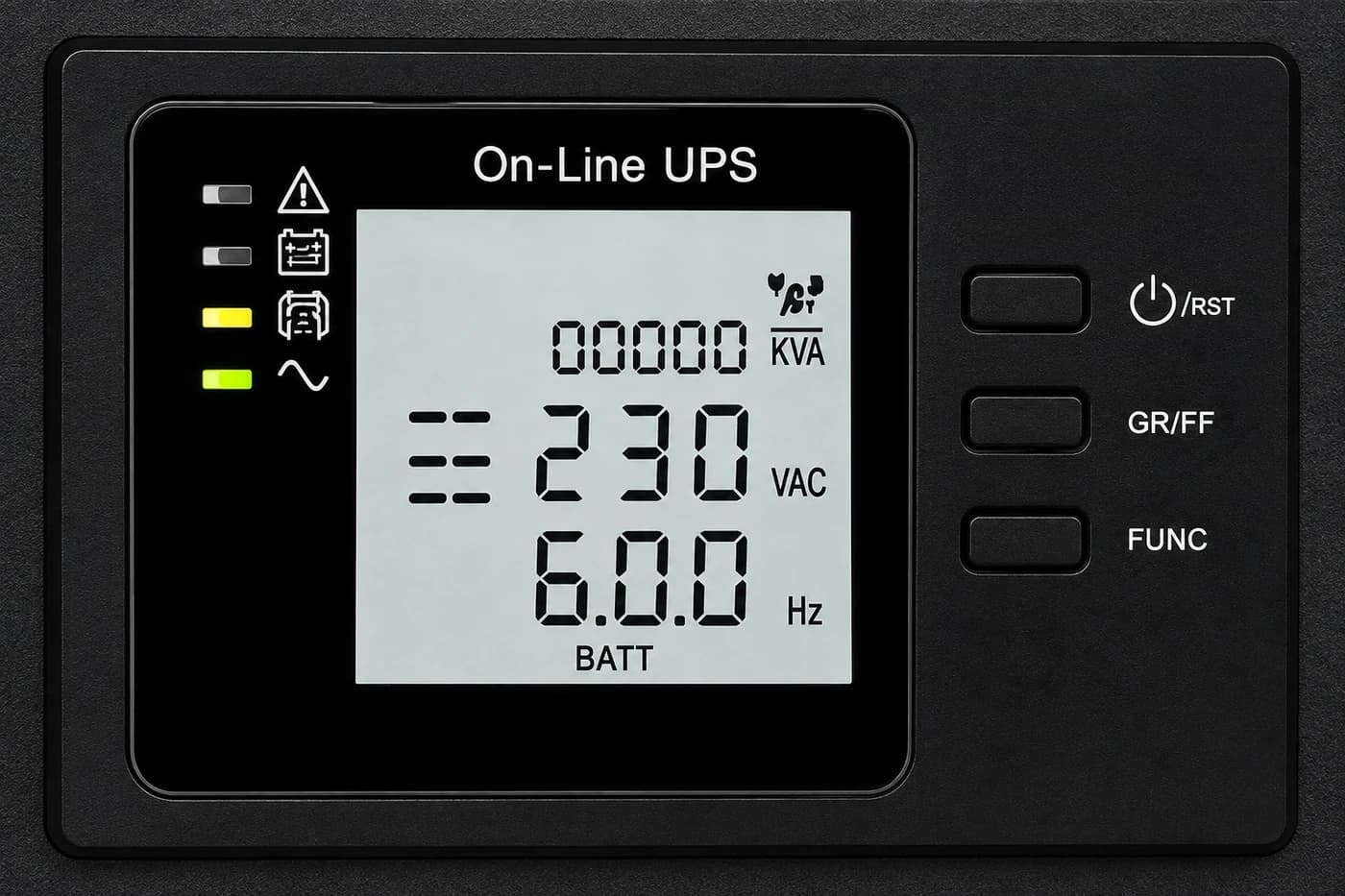

Remote monitoring + EPO

SNMP / MODBUS monitoring and control; USB, RS485, parallel port and dry-contact interfaces; emergency power off.

100% unbalanced load

The output can meet a fully unbalanced three-phase load.

Why this product

The engineering value

Built for the demands of a data centre

NOC, storage, server farms and mission-critical medical equipment need reliability, availability and scalability engineered together — thermal design, paralleling and very high MTBF.

The batteries stay in reserve

The wide input window means ordinary supply excursions are handled by the converter, not by transferring to battery — extending battery life and reducing risk.

Smaller footprint

A transformerless IGBT design in a vertical form factor takes less floor space than an equivalent transformer-based system.

Applications

Where it fits

Typical applications for this range — not an exhaustive list.

  • Data centres and server farms
  • Network operations centres (NOC)
  • Storage infrastructure
  • Mission-critical medical equipment
  • Surveillance and networked IT
Technology

Online double conversion with a 0 ms transfer

The IGBT rectifier feeds a DC bus that is shared with the battery; the inverter continuously regenerates the three-phase output.

On mains failure the inverter keeps running from the battery with no transfer time. A static bypass is available for overload or service.

Online double conversion — the load never sees the raw mains
STATIC BYPASS (standby)GridUtility ACRectifierAC → DC · PFCDC busRegulated DCBatteryReserve energyInverterDC → ACCritical loadProtected output

The rectifier and inverter run continuously, regenerating a clean output. The battery floats on the DC bus, held in reserve — current is always flowing to the load.

Models & range

Model line-up

Real model designations and capacities transcribed from COMPACT's catalogue.

Model

YDC3310 S/H

Capacity (kVA / kW)
10 / 9
Battery voltage
192 / 240 V
Dimensions H×W×D (mm)
828 × 250 × 868
Net weight
< 70 kg
Model

YDC3315 S/H

Capacity (kVA / kW)
15 / 13.5
Battery voltage
192 / 240 V
Dimensions H×W×D (mm)
828 × 250 × 868
Net weight
< 70 kg
Model

YDC3320 S/H

Capacity (kVA / kW)
20 / 18
Battery voltage
192 / 240 V
Dimensions H×W×D (mm)
828 × 250 × 868
Net weight
< 70 kg
Model

YDC3330 S/H

Capacity (kVA / kW)
30 / 27
Battery voltage
192 / 240 V
Dimensions H×W×D (mm)
828 × 250 × 868
Net weight
< 70 kg
Model

YDC3340 S/H

Capacity (kVA / kW)
40 / 36
Battery voltage
384 / 408 / 432 / 456 V
Dimensions H×W×D (mm)
828 × 250 × 868
Net weight
< 70 kg
Model

YDC3360 S/H

Capacity (kVA / kW)
60 / 54
Battery voltage
384 / 408 / 432 / 456 V
Dimensions H×W×D (mm)
828 × 360 × 868
Net weight
< 120 kg
Model

YDC3380 S/H

Capacity (kVA / kW)
80 / 72
Battery voltage
384 / 408 / 432 / 456 V
Dimensions H×W×D (mm)
828 × 360 × 868
Net weight
< 120 kg

Seven models, 10–80 kVA. The range steps 40 → 60 kVA — there is no 50 kVA rating. Battery voltage per the latest YD brochure: 192 / 240 V on 10–30 kVA, 384–456 V on 40–80 kVA (the legacy YD catalogue grouped 40 kVA with the lower-voltage class). Per-model cabinet dimensions/weights are indicative and confirmed by the sales team; whether the 40 kVA now uses the larger frame is a VERIFY item.

Specifications

Technical specification

Transcribed from COMPACT's product catalogue.

Input

Nominal voltage
380 / 400 / 415 VAC (3Ph + N + PE)
Operating voltage range
208–478 Vac
Operating frequency range
45–55 Hz @ 50 Hz / 54–66 Hz @ 60 Hz (auto-sensing); 40–70 Hz on 60/80 kVA
Power factor
≥ 0.99
Input THDi
≤ 3% (non-linear load)

Bypass

Voltage range
380 VAC +25% max (opt +10/15/20%); 400 VAC +20% (opt +10/15%); 415 VAC +15% (opt +10%); min −45% (opt −20/−30%)
Frequency range
Synchronised tracking range ± 10%

Output

Voltage
380 / 400 / 415 VAC (3Ph + N + PE)
Power factor
0.8 / 0.9
Voltage regulation
± 1%
Frequency — line mode
± 1% / ± 2% / ± 4% / ± 5% / ± 10% of rated (selectable)
Frequency — battery mode
50 / 60 Hz ± 0.1
Crest factor
3:1 (max)
THDi
≤ 2% linear load / ≤ 5% non-linear load
Efficiency
≤ 94.5%

Battery & system

Battery voltage
192 / 240 V (10–30 kVA); 384 / 408 / 432 / 456 V (40–80 kVA)
Charge current
Max 10 A (10–30 kVA); max 30 A (40–80 kVA)
Transfer time
Mains ↔ battery 0 ms; mains ↔ bypass 0 ms
Overload
≤ 110% 60 min · ≤ 125% last 10 min · ≤ 150% last 1 min · > 150% → bypass
Communication
USB, parallel port, dry contact, intelligent slot; SNMP card & relay card optional

Environment & standards

Operating / storage temperature
0–40 °C / -25 to 55 °C
Humidity
0–95% non-condensing
Noise level
< 58 dB
Dimensions (H×W×D)
828 × 250 × 868 mm (10–40 kVA) / 828 × 360 × 868 mm (60–80 kVA)
Net weight
< 70 kg (10–40 kVA) / < 120 kg (60–80 kVA)
Safety
IEC / EN 62040-1, IEC / EN 60950-1
EMC
IEC / EN 62040-2, IEC 61000-4-2/-3/-4/-5/-6/-8
